EME Ltd - SMS Remote Monitoring Option on Elite 2 and Elite 4

SMS Remote Monitoring Option on Elite 2 and Elite 4

Stock: Now in stock

Code:

Want to order this product?
Please log in or register now!


Product Description

Keep an eye on your ELITE Pull tab dispensers, even while you are on the move. Save on time and travel expenses. Check on ticket sales, taking, machine utility or run Pay As You Go etc. The only running cost is a SIM Card and the SMS messages. The system is secure as every machines has its own telephone number and you set the password.

How it works:

Send an SMS message to your machine. You will recieve a SMS reply showing the data and parameters stored in the machine. Machine telephone number of the country of origin apply.

EME UK SMS ELITE REMOTE MONITORING EXAMPLES:

Elite Dispenser telephone number: 0XXXXXXXXXX

ELITE Dispenser password and commands :ABCD[space]C or T or F or D or E

There are 7 commands for the data retrieval or the machine control.

Each command represents an individual SMS message.

C = COLUMNS - Shows how many tickets have been dispensed by each column, Status of each column as (ON/OFF) and (EMPTY = 0), W = Working, D = Disabled, T = Tickets in, E = Empty.

T = TELEMETRY MACHINE - Machine status ON / OFF, Number of SMS accesses, Number of mains ON / OFF's, Number of dispensers' slot blocks, Light ingresses and Purges.

F = FINANCIAL - Actice credit, Ticket nominal value / price setting per column, Total cash taken, Total number of cards vended.

D = Machine DISABLE - This command will stop the machine from working. Show all data as < T=>

E = Machine ENABLE - This command will start the machine working again. Shows all data as < T= >

There are 2 other commands (that we would not like you to use in this demo), to:

a) RESET the machine - The same function as pressing the Reset button on the machine. It can be used to enable a dispenser that has been turned off because of a fault condition.

b) CLEAR / RESET - All variable data stored in the machine apart from the number of this command to date and the parameters set by slide switches on the control module, such as Ticket price per column, Test, Check, Coin and Bank note acceptors and PLAY ALL (if fitted).

Example of requesting the FINANCIAL DATA - ELITE 2

  1. Open SMS Messaging Application
  2. Type in the telephone number 0XXXXXXXXXX
  3. Type in message ABCD[space]F ( Please note all letters must be in Upper Case and ABCD is just an example password)
  4. Send message

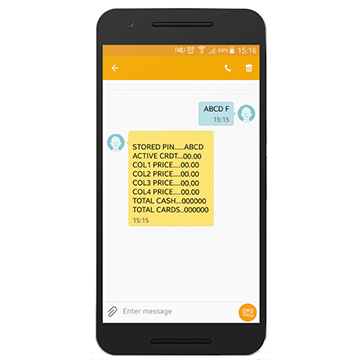

After 10 seconds you will recieve data formatted as:

**ELITE 2 - V2.16**
ACTIVE CREDIT .......00.00
COL1 PRICE ....... 00.50
COL2 PRICE ....... 01.00
TOTAL CASH ....... 000957
TOTAL #CARDS .... 001609

Example of requesting the TELEMETRY MACHINE DATA - ELITE 2
  1. Open SMS Messaging Application
  2. Type in telephone number 0XXXXXXXXXX
  3. Type in the message: ABCD[space]T ( Please note all letters must be in Upper Case. ABCD is only an example password.)
  4. Send message

After 10 seconds you will recieve data formatted as

**ELITE 2 - V2.16**
UNIT STATUS ....... ON
SMS ACCESS ....... 00055
MAINS CYCLES ...... 00195
SLOT BLOCKS ....... 00003
E2 PURGES ....... 00001



Product Specification

Factory or Retrofit option
